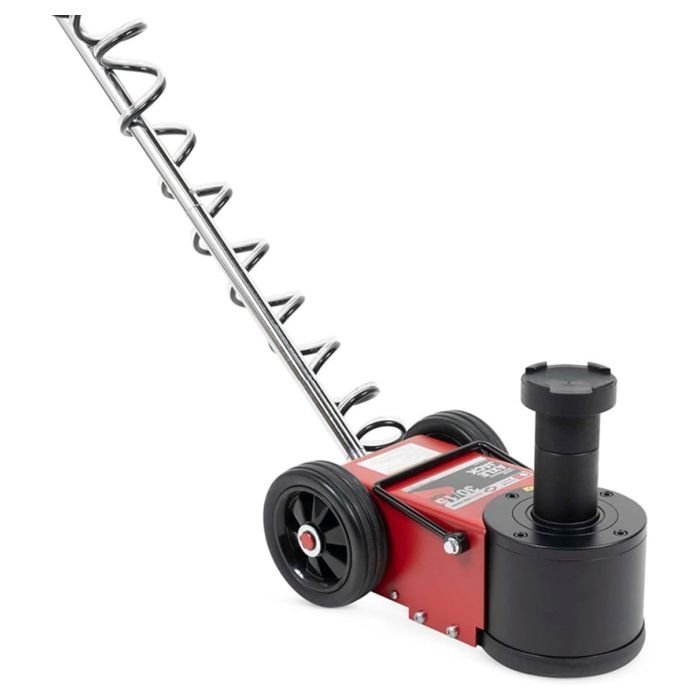

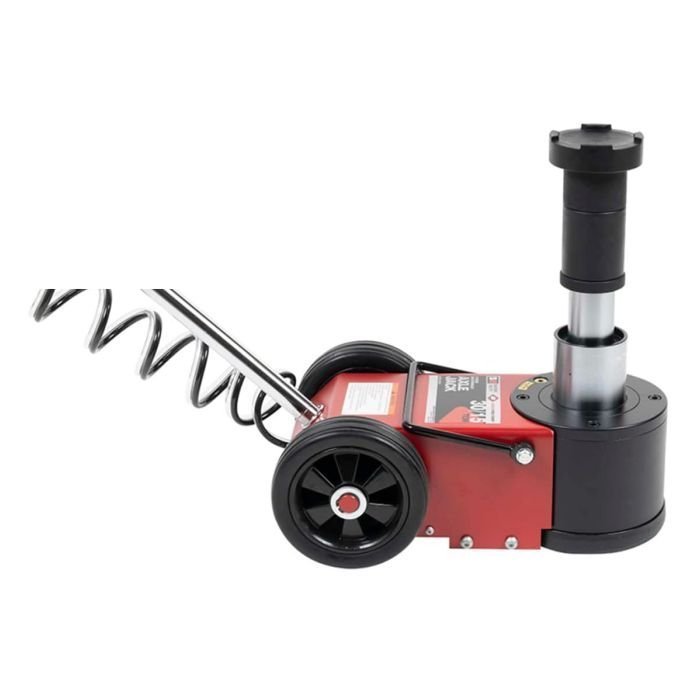

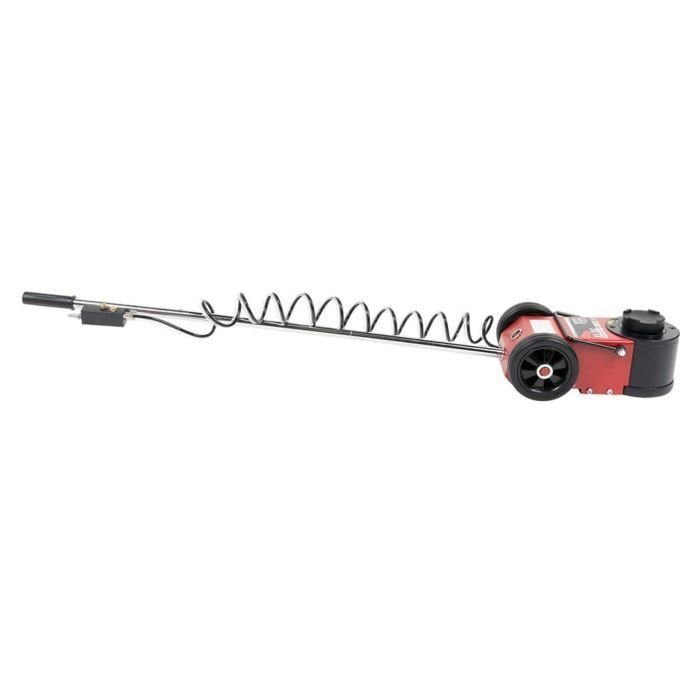

AFF 30-15-Ton 2-Stage Air Hydraulic Axle Jack

Description

AFF 545SD 30/15 Ton 2 Stage Air/Hydraulic Axle Jack

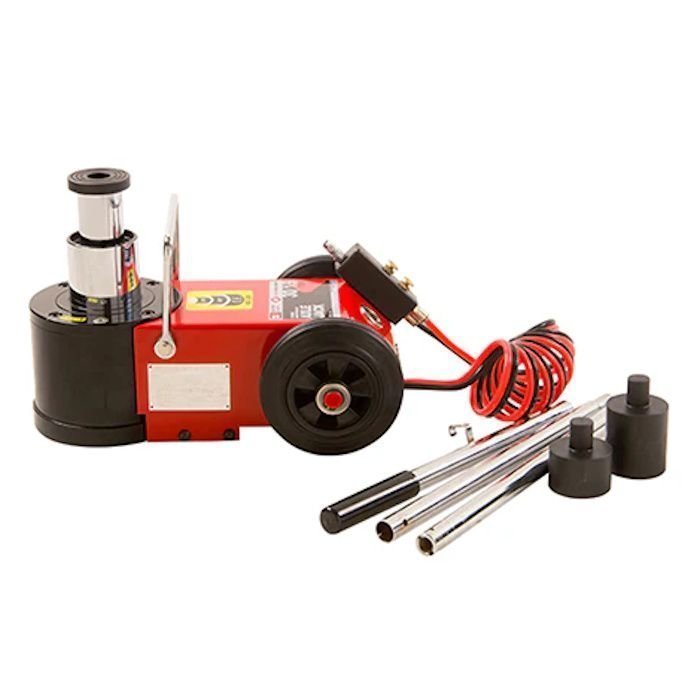

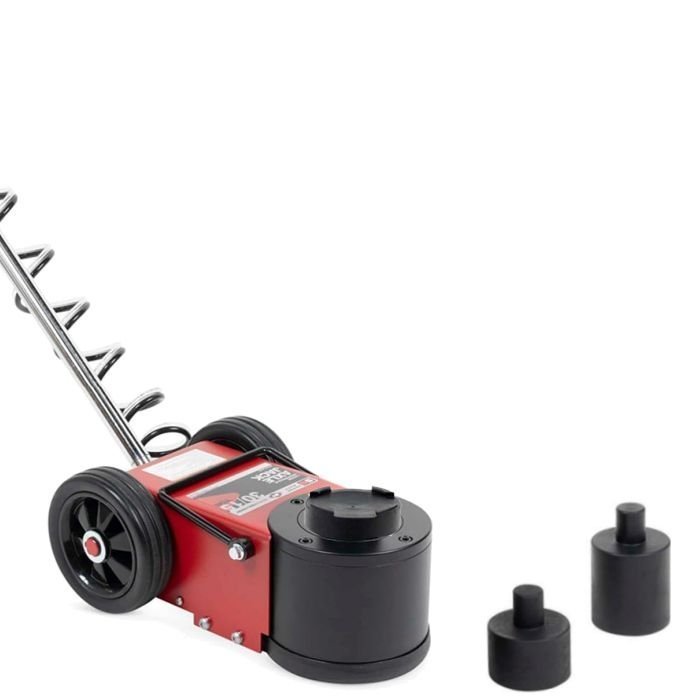

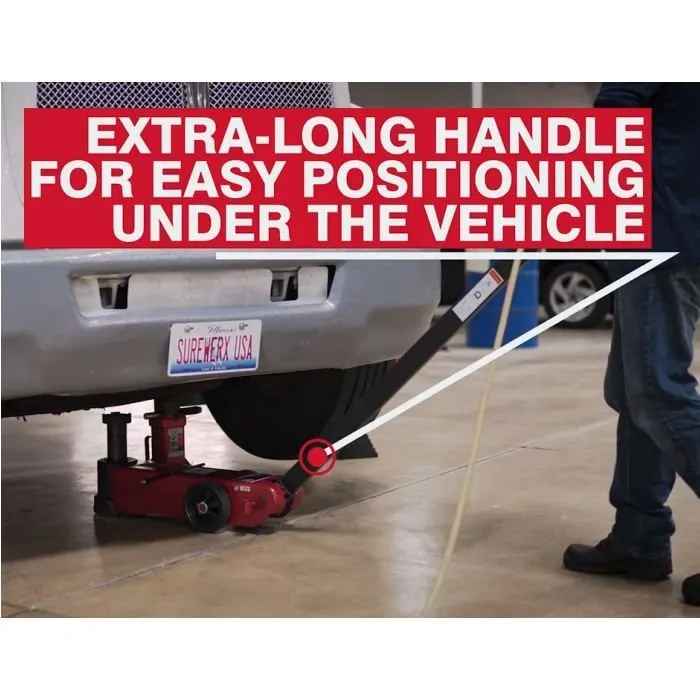

The AFF 545SD is extra light weight and portability makes this the ideal service jack for Service Vehicles. Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack The extra long removable handle and rugged rear wheels make for easy positioning in hard to reach places, Air assisted lowering speeds up ram retraction, Comes with 2 extensions (75mm/3″ + 45 mm/1.75″) and saddle adapter, Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions Low height makes this one of the lowest operating heavy jacks on the market, Ideally suited for drop axles and other low clearance jobs

AFF Hydraulic Jack Specifications:

•  Model | 545SD
•  Capacity (tons) | 30/15
•  Ram Lift | 2.91″/5.59″
•  Low Height | 5.92″/5.92″
•  High Height | 8.82″/11.5″
•  High Height (with extensions) | 14.57″/17.25″
•  Working Air Pressure | 116 to 145 PSI
•  Ship Weight | 77 lbs
