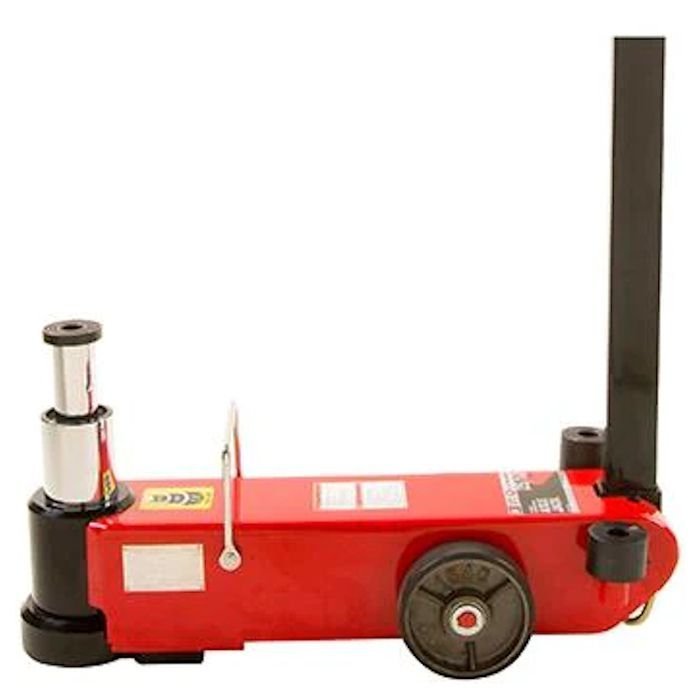

AFF 25-10-Ton 2-Stage Air Hydraulic Axle Jack

Features and Benefits:

• Color: Red/Black
• Capacity: 25/10 Tons
• Product Type: Axle Jack
• Stages: 2
• Power Type: Hydraulic
• Operation Type: Air Assist
• Duty Level: Super Heavy Duty
• Minimum Height (in.): 7.28″
• Maximum Height without Extensions: 18.66″
• Maximum Height with Extensions: 23.16″
• Ram Lift (in.) – Stage 1: 3.82″
• Ram Lift (in.) – Stage 2: 7.56″
• Ram Lift (in.) – Stage 3: N/A
• Capacity (T) – Stage 1: 25 Tons
• Capacity (T) – Stage 2: 10 Tons
• Capacity (T) – Stage 3: N/A
• Handle Length (in.): 54″
• Number of Handle Pieces: 1
• Handle Locking Positions: 90/45/180
• Chassis Length (in.): 35.5″
• Chassis Width (in.): 16″
• Saddle Diameter: 4″
• Number of Extensions: 2
• Extension Sizes (in.): 1.75″ & 3″
• Extension Screw: N/A
• Wheel Diameter (in.): 8″
• Working Air Pressure: 116 – 174 PSI
• Weight: 128 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundrys Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
• SUPER HEAVY DUTY, 2 Stage 25 Ton and 10 Ton built tough for the rigors of the Heavy-Duty Trucking, Agricultural and Fleet business.
• An integral Descent Metering Valve maintains a controlled and safe lowering of the load
• The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions
• Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.

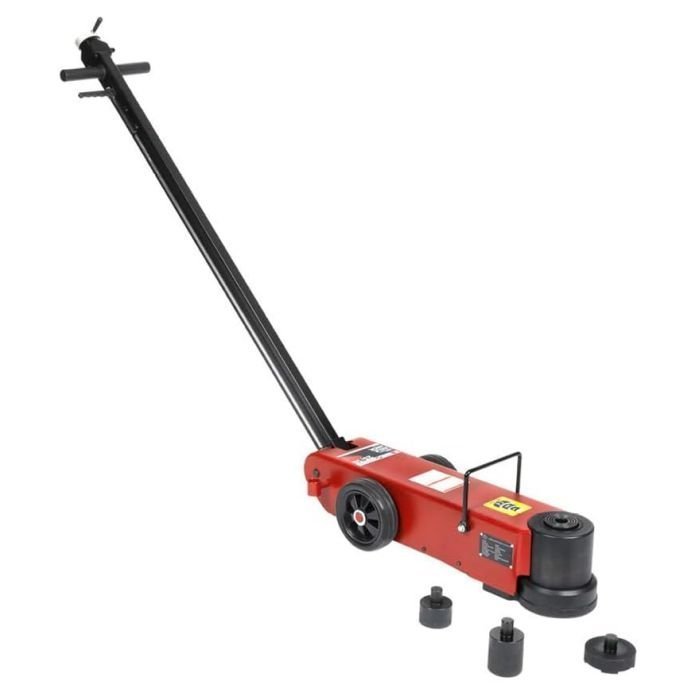

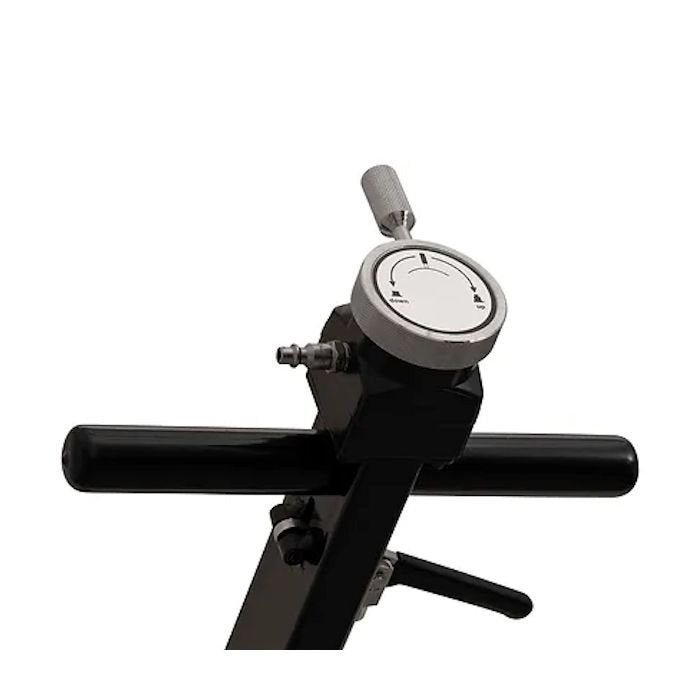

• The extra-long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
• Single piece base construction provides superior strength for increased load stability.
• Air assisted lowering speeds up ram retraction.
• Built in overload safety valve prevents damage to unit due to excessive load.

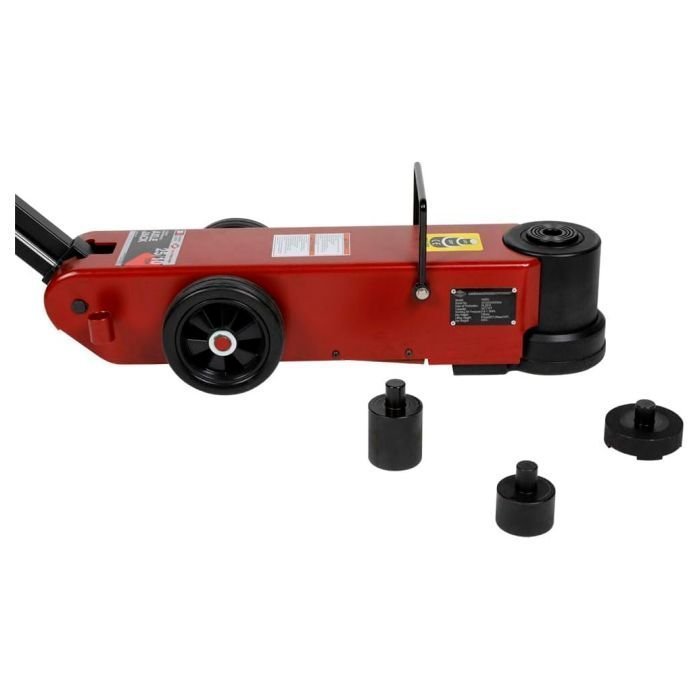

• Comes with 2 extensions (3”, 1.75”) and saddle adapter.
